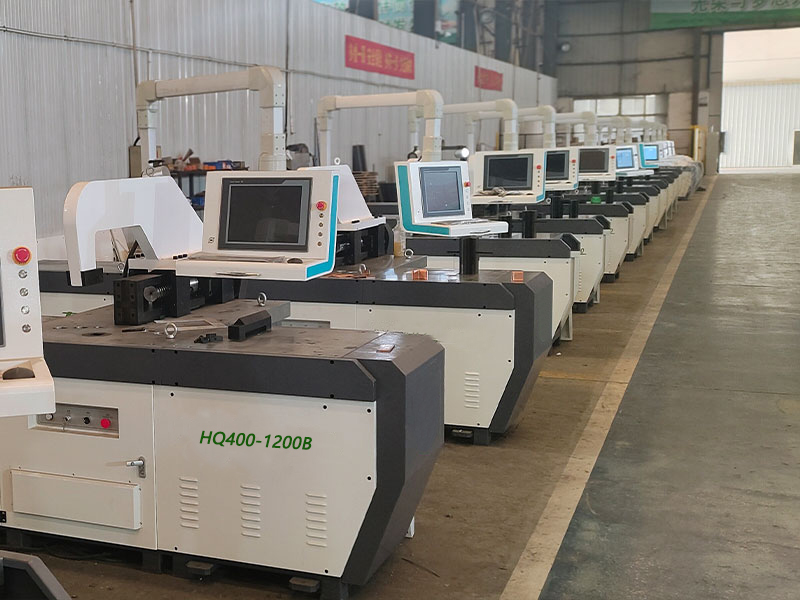

HQ400-1200B Copper CNC Busbar Bending Machine
Classification :
PRODUCT DETAILS
Product Information
Product: CNC Copper Busbar Bending Machine
Model: HQ400-1200B / HQ400-2000B
Main Function: Copper and Aluminum Busbar Flat Bending, U-Bending, Vertical (Stand-Up) Bending
Main Features

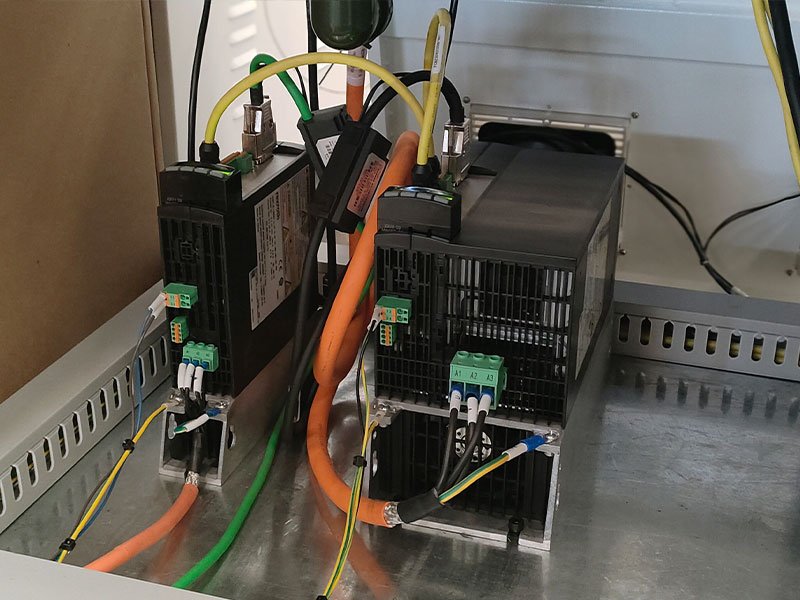

1. Fully servo motor drive system with stable transmission, high output pressure and accurate positioning.
2. Closed bending structure with balanced force, high mechanical strength, and long-term stability without deformation.

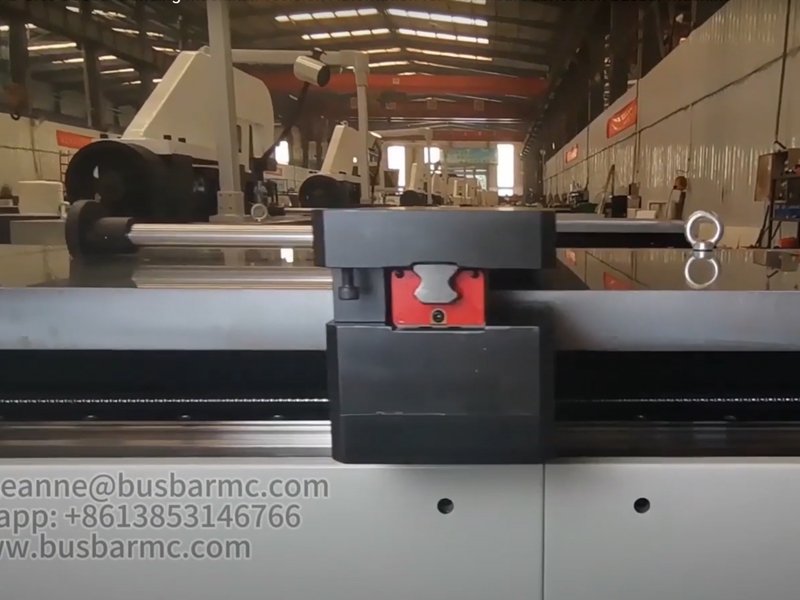

3. Double linear guide rails and ball screw ensure smooth, low-noise operation.
4. Industrial computer + PLC control system for precise bending angle and material positioning.
5. Equipped with self-developed CAD/CAM programming software for easy operation and fast code generation.
6. Supports flat bending, vertical bending, and pipe bending with corresponding molds.
7. Easy mold installation and replacement, stable blocking and bending accuracy.
8. Supports batch import of bending files and visual generation of machining programs.
Technical Parameters
Nominal Pressure: 400KN
Gauge Length: 1200mm
Max Horizontal Bending Size: 15 × 200mm
Max Vertical Bending Size: 12 × 120mm
Gauge Accuracy: ±0.15mm
Bending Accuracy: ±0.3°
Machine Size: 3500 × 1450 × 1850mm
Machine Weight: 3100kg
Operation Video
<iframe width="700" height="415" src="https://www.youtube.com/embed/RC12CGjX7vg" title="CNC copper busbar bending machine operation video" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen=""></iframe><iframe width="700" height="415" src="https://www.youtube.com/embed/FPlDBr89X5g" title="CNC Busbar Machine: From Factory to Professional On-site Installation Training on Busbar Machines" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen=""></iframe>
FAQ – CNC Copper/Aluminum Busbar Bending Machine (HQ400-1200B / HQ400-2000B)
1. What materials can this machine process?
It is suitable for copper and aluminum busbars.
2. What bending types are supported?
Flat bending, U-bending, and vertical bending.
3. What control system does it use?
Industrial computer and PLC control with servo motor drive.
4. Is CAD/CAM software included?
Yes, self-developed CAD/CAM software is supported for programming.
5. Can it work with CNC punching and shearing machines?
Yes, it supports integration with HQ600-SP CNC punching and shearing machines.
6. Is batch processing supported?
Yes, batch import and visual program generation are supported.
7. Can molds be customized?
Yes, multiple molds can be customized according to busbar size.
8. Is the machine easy to operate?
Yes, the CNC operating system is designed for simple and convenient operation.
